With a large and comprehensive
container fleet ranging from standard dry cargo containers to refrigerated and special
containers, you can be assured that you will find the best solution to your cargo
transportation needs.
The following equipment specifications are available (more upon request):
20' containers are closed weather-tight containers that
are suitable for any general cargo. 20' containers have a payload capacity of up
to 28,160 kg, close to the payload capacity of most 40' containers. This makes 20'
standard steel containers especially suitable for high-density and heavyweight cargo.
| Description | Metric | U.S. |
| Cubic Capacity | 33,200 cubic meters | 1,170 cubic ft |
| Payload (Weight) | 21,850 Kg or 28,160 kg | 48,171 lb or 62,082 lb |
| Tare Weight | 2,150 kg or 2,220 kg | 4,740 lb or 4,894 lb |
| Max Gross Weight | 24,000 kg or 30,480 kg | 52,911 lb or 67,197 lb |
| Internal Length | 5.898 m | 19'4" |
| Internal Width | 2.352 m | 7'9" |
| Internal Height | 2.392 m | 7'10" |
| External Length | 6.058 m | 19'10 1/2" |
| External Width | 2.438 m | 8'0" |
| External Height | 2.591 m | 8'6" |
| Door Opening Width | 2.340 m | 7'8" |
| Door Opening Height | 2.280 m | 7'6" |
Open top containers are especially suitable for transporting over height cargo,
i.e. cargo taller than 2.54m (8'5''). Cargo can be loaded by crane from the top-side.
Over height cargo can also be loaded from the door-side since the door header can
be swung open. Numerous lashing rings are available on the four corner posts, top-side
rails and bottom-side rails for securing the cargo. If the cargo needs to be protected
from rain, tarpaulin sheets can be provided to cover the top of the container. Forklift
pockets are available on many 20' open top containers. Commodities commonly shipped
in the open top containers include machinery, industrial boilers, tractors, steel
pipes, steel bars and cables.
| Description | Metric | U.S. |
| Cubic Capacity | 32.200 cubic meters | 1,130 cubic ft |
| Payload (Weight) | 28,230 kg | 62,240 lb |
| Tare Weight | 2,250 kg | 4,960 lb |
| Max Gross Weight | 30,480 kg | 67,200 lb |
| Internal Length | 5.900 m | 19'4" |
| Internal Width | 2.350 m | 7'8" |
| Internal Height | 2.310 m | 7'7" |
| Door Opening Width | 2.340 m | 7'8" |
| Door Opening Height | 2.260 m | 7'5" |
| Roof Opening Width | 5.500 m | 18'1" |
| Roof Opening Height | 2.220 m | 7'3" |
40' containers are closed weather-tight containers that can be used to transport
any general cargo. Most 40' containers have a payload capacity of 28,760 kg with
a gross weight of 32,500 kg. This exceeds the payload capacity of 26,760 kg (gross
weight of 30,480 kg) required by ISO standards. Almost all 40' containers have a
recess at the bottom called the gooseneck tunnel.
| Description | Metric | U.S. |
| Cubic Capacity | 67.700 cubic meters | 2,391 cubic ft |
| Payload (Weight) | 26,760 kg or 28,760 kg | 58,996 lb or 63,405 lb |
| Tare Weight | 3,720 kg or 3,740 kg | 8,201 lb or 8,245 lb |
| Max Gross Weight | 30,480 kg or 32,500 kg | 67,197 lb or 71,650 lb |
| Internal Length | 12.032 m | 39'6" |
| Internal Width | 2.352 m | 7'9" |
| Internal Height | 2.392 m | 7'10" |
| External Length | 12.192 m | 40'0" |
| External Width | 2.438 m | 8'0" |
| External Height | 2.591 m | 8'6" |
| Door Opening Width | 2.340 m | 7'8" |
| Door Opening Height | 2.280 m | 7'6" |
Open top containers are especially suitable for transporting over height cargo,
i.e. cargo taller than 2.54m (8'5''). Cargo can be loaded by crane from the top-side.
Over height cargo can also be loaded from the door-side since the door header can
be swung open. Numerous lashing rings are available on the four corner posts, top-side
rails and bottom-side rails for securing the cargo. If the cargo needs to be protected
from rain, tarpaulin sheets can be provided to cover the top of the container. Forklift
pockets are available on many 40' open top containers. Commodities commonly shipped
in the open top containers include machinery, industrial boilers, tractors, steel
pipes, steel bars and cables. Gooseneck tunnels are available on most 40' open top
containers.
| Description | Metric | U.S. |
| Cubic Capacity | 65.5 cubic meters | 2,306 cubic ft |
| Payload (Weight) | 26,580 kg | 58,602 lb |
| Tare Weight | 3,900 kg | 8,598 lb |
| Max Gross Weight | 30,480 kg | 67,200 lb |
| Internal Length | 12.040 m | 39'6" |
| Internal Width | 2.350 m | 7'8" |
| Internal Height | 2.310 m | 7'7" |
| Door Opening Width | 2.340 m | 7'8" |
| Door Opening Height | 2.260 m | 7'5" |
| Roof Opening Width | 11.600 m | 38'1" |
| Roof Opening Height | 2.140 m | 7'0" |
40' high cube containers are suitable for all general cargo transportation. They
are almost identical to the 40' standard containers, except that they have more
cubic capacity as they are one foot taller. Thus, 40' high cube containers are especially
suitable for voluminous cargo. The ISO standard payload capacity is 26,760 kg with
a gross weight of 30,480 kg. Most of 40' high cube containers have a payload capacity
of 28,550 kg with a gross weight of 32,500 kg, which surpasses the ISO requirement.
Almost all 40' containers have a recess at the bottom called the gooseneck tunnel.
| Description | Metric | U.S. |
| Cubic Capacity | 76.400 cubic meters | 2,700 cubic ft |
| Payload (Weight) | 26,750 kg or 28,550 | 58,974 lb or 62,942 lb |
| Tare Weight | 3,730 kg or 3,950 kg | 8,223 lb or 8,708 lb |
| Max Gross Weight | 30,480 kg or 32,500 kg | 67,197 lb or 71,650 lb |
| Internal Length | 12.033 m | 39'6" |
| Internal Width | 2.352 m | 7'9" |
| Internal Height | 2.698 m | 8'10" |
| External Length | 12.192 m | 40'0" |
| External Width | 2.438 m | 8'0" |
| External Height | 2.896 m | 9'6" |
| Door Opening Width | 2.340 m | 7'8" |
| Door Opening Height | 2.585 m | 8'6" |
Being 9'6'' tall (high cube) and 45' long, 45' high cube containers have a capacity
of 86.5 cubic meters, 18.8 cubic meters more than the standard 40' containers. They
are especially suitable for voluminous lightweight cargo. Almost all 45' containers
have a recess at the bottom called the gooseneck tunnel.
| Description | Metric | U.S. |
| Cubic Capacity | 86.500 cubic meters | 3,055 cubic ft |
| Payload (Weight) | 28,280 kg | 62,350 lb |
| Tare Wight | 4,740 kg | 10,450 lb |
| Max Gross Weight | 33,020 kg | 72,800 lb |
| Internal Length | 13.556 m | 44'6" |
| Internal Width | 2.352 m | 7'9" |
| Internal Height | 2.701 m | 8'10" |
| External Length | 13.716 m | 45'0" |
| External Width | 2.438 m | 8'0" |
| External Hight | 2.896 m | 9'6" |
| Door Opening Width | 2.340 m | 7'8" |
| Door Opening Height | 2.588 m | 8'6" |

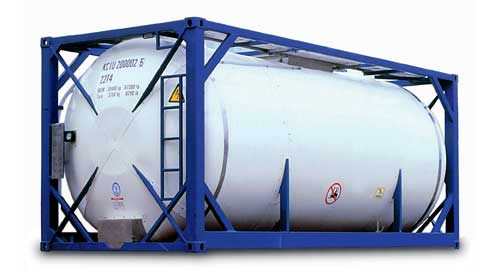

APL operates a 24,000-litre ISO tank container fleet. Our tank container fleet
is separated for two transportation purposes: tank containers for liquid chemical
products and tank containers exclusively for liquid foodstuff. All APL tanks are
of the highest quality design and construction, and conform strictly to the latest
international approvals. Commodities commonly shipped in the tank container include
harmful and/or hazardous chemicals and liquid foodstuff.
| Description | Metric | U.S. |
| Cubic Capacity | 24,000 liter | 6,340 gallon |
| Tare Weight | 3,650 kg | 8,047 lb |
| Max Gross Weight | 34,000 kg | 74,957 lb |
| Working Pressure | 4 bar | 58.0 psi |
| Test Pressure | 6 bar | 87.0 psi |
| Vacuum Pressure | 0.42 bar | 6.1 psi |
| Barrel/Head Thickness | 4.6/4.5 mm | 0.181"/0.177" |
| External Length | 6.058 m | 19'11" |
| External Width | 2.438 m | 8'0" |
| External Height | 2.591 m | 8'6" |
|
Internal Dimension | ||
| Length: | 5,897 mm | 19 ft 4.17 in | |
| Width: | 2,018 mm | 6 ft 7.45 in | |
| Height: | 2,097 mm | 6 ft 9.77 in | |
| Weight | |||
| Max Gross: | 30,480 kg | 67,200 lb | |
| Tare: | 2,720 kg | 6,000 lb | |
| Max Payload: | 27,760 kg | 61,200 lb | |
| Load Capacity | |||
| 25.0 m2 | 882 ft2 | ||
|
Internal Dimension | ||
| Length: | 11,986 mm | 39 ft 3.89 in | |
| Width: | 2,236 mm | 7 ft 4.03 in | |
| Height: | 1,968 mm | 7 ft 5.48 in | |
| Weight | |||
| Max Gross: | 45,000 kg | 99,210 lb | |
| Tare: | 5,850 kg | 12,900 lb | |
| Max Payload: | 39,150 kg | 86,310 lb | |
| Load Capacity | |||
| 52.7 m2 | 1,860 ft2 | ||
|
Internal Dimension | ||
| Length: | 5,455 mm | 17 ft 10.76 in | |
| Width: | 2,290 mm | 7 ft 6.16in | |
| Height: | 2,262 mm | 7 ft 5.06in | |
| Door Opening | |||
| Width: | 2,290 mm | 7 ft 6.16 in | |
| Height: | 2,227 mm | 7 ft 3.68 in | |
| Weight | |||
| Max Gross: | 24,000 kg | 52,910 lb | |
| Tare: | 2,960 kg | 6,530 lb | |
| Max Payload: | 21,040 kg | 46,380 lb | |
| Load Capacity | |||
| 28.3 m2 | 998 ft2 | ||
|
Internal Dimension | ||
| Length: | 11,554 mm | 39 ft - 10.88 in | |
| Width: | 2,286 mm | 7 ft - 6.00 in | |
| Height: | 2,216 mm | 7 ft - 3.24 in | |
| Door Opening | |||
| Width: | 2,337 mm | 7 ft 8.01 in | |
| Height: | 2,272 mm | 7 ft 5.45 in | |
| Weight | |||
| Max Gross: | 30,480 kg | 67,200 lb | |
| Tare: | 4,240 kg | 9,350 lb | |
| Max Payload: | 26,240 kg | 57,850 lb | |
| Load Capacity | |||
| 58.5 m2 | 2,066 ft2 | ||
|
Internal Dimension | ||
| Length: | 11,554 mm | 39 ft - 0.00 in | |
| Width: | 2,290 mm | 7 ft - 6.16 in | |
| Height: | 2,527 mm | 8 ft - 3.49 in | |
| Door Opening | |||
| Width: | 2,290 mm | 7 ft - 6.16 in | |
| Height: | 2,491 mm | 8 ft - 2.10 in | |
| Weight | |||
| Max Gross: | 30,480 kg (32,500 kg) | 67,200 lb (71,650 lb) | |
| Tare: | 4,110 kg | 9,060 lb | |
| Max Payload: | 26,370 kg | 58,140 lb | |
| Load Capacity | |||
| 67.0 m2 | 2,366 ft2 | ||
